Copper has a wide range of applications, from electrical wiring to musical instruments. Allied supports a multitude of copper metal production processes with an extensive refractory selection. We specialize in copper shaft furnace systems and induction furnaces melting copper and copper alloys, providing products that can improve efficiency, performance and equipment life.
Copper Metals
With its distinct color and useful properties, copper – and its various alloys – is a popular, versatile metal.
Primary & Secondary
A starting point in copper production in which the metal is refined into a useful form. Allied provides products for anode furnaces, specifically casting spoons.
|
||
|
Allied supports the important first steps in processing and manufacturing copper.
Our focus is the anode furnace casting spoon, where we supply high quality refractory for linings. Allied products withstand the high temperatures and abrasion involved in this application, enhancing equipment for optimal anode castings. Area
Top Products
Floor & Sidewalls
TUFFCRETE® 28 SiC Z – high strength, silicon carbide-containing mix
Tip of Spoon
DURALAST SIC – Nitride Bonded SiC Brick
▲ Collapse
|
||

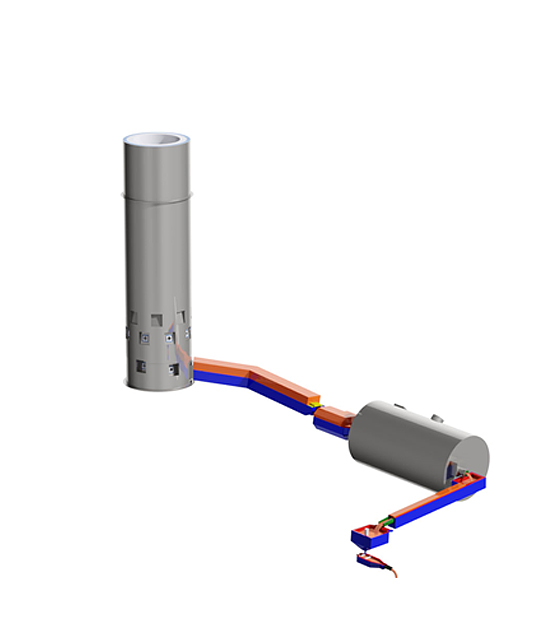

Copper Shaft System
A widely-used method for copper processing. Allied products serve all components of this complex system, from shaft furnace to metering box.
|
||
Copper Shaft Furnace
Impact Zone
DURALAST SIC – Nitride Bonded SiC Brick
METAL-ROK® ARMORMAX® 28 SiC Lining
DURALAST SIC – Nitride Bonded SiC Brick
MT-SC-85 SiC Mortar – Mortar for laying SiC brick. Backup Lining
CAST 2800 – Castable backup for vertical section; behind impact brick.
DRI-VIBE® 972CSF – Dry Vibratable Backup TUFFCRETE® 28 SIC Z – Backup castable for conical section; below metal line. Subhearth Support / Subhearth
TUFF-FLO 50 – LC Castable for precast Subhearth Supports and precast Subhearth.
Burner Blocks
DURALAST SIC – Precast Nitride Bonded SiC Shape
Upper Launder
Working Lining
TUFFCRETE® 80 SIC – Field cast or Precast
TUFFCRETE® 28 SIC Z – Field cast or Precast Field cast or Precast GT30CR – Field cast or Precast Field cast or Precast GT50CR – Field cast or Precast Field cast or Precast Nitride Bonded SiC Brick Spout
TUFFCRETE® 60 SiC – Precast
Slag Trap
Working Lining
TUFFCRETE® 28 SIC Z – Cast
ARMORMAX® 28 SIC – Cast GT30CR – Cast GT50CR – Cast DURALAST SIC – Nitride Bonded SiC Brick Holding Furnace
Working Lining
DURALAST SIC – Nitride Bonded SiC Brick
MT-SC-85 SiC Mortar – Mortar for laying SiC brick. Exit Spout
TUFFCRETE® 60 SIC – Precast Cylinder
LITE KASTITE 3000 – Insulating castable backup Lower Launder
Working Lining
GT30CR – High chrome if oxygen is being injected
LCF316CR – High chrome if oxygen is being injected TUFFCRETE® 80 SIC – Field cast or Precast shapes TUFFCRETE® 28 SIC Z – Field cast or Precast shapes DURALAST SIC – Nitride Bonded SiC Brick 6-Metering Box
Working Lining
TUFFCRETE® 28 SIC Z – Cast
TUFFCRETE® 60 SIC – Cast ARMORMAX® 28 SIC – Cast DURALAST SIC – Nitride Bonded SiC Brick 7-Stopper Rods & Nozzles
Stopper Rods
Hagenburger Stopper Rods – Isostatically pressed graphitized Alumina
Nozzles
TUFFCRETE® 60 SiC
8-Tundish
Working Lining
DURALAST SIC – Nitride Bonded SiC Brick
ARMORMAX® 28 SIC – Cast TUFFCRETE® 60 SIC – Cast ▲ Collapse
|
||

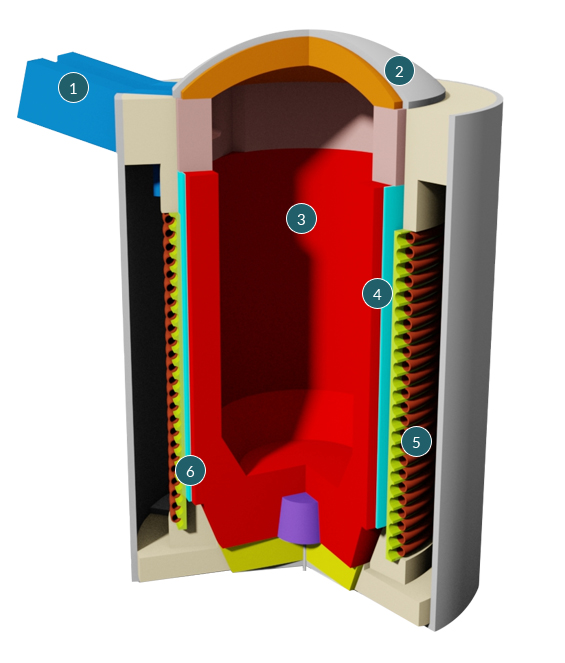

CORELESS INDUCTION FURNACE
1Spout
Matrifire® 8085ACX
79% alumina, phosphate bonded castable
Minro-Al® Plastic A76
67% alumina, phosphate bonded plastic
Minro-Al® Plastic A91
87% alumina, phosphate bonded plastic
Quick-Fire® 88
88% alumina, two component phosphoric bonded castable
Precast Shapes
(alumina content 45-90%)
2Cover
CW 137 CASTABLE
Bubble alumina based, insulating
TUFF-FLO 50A
50% alumina, low cement castable
Minro-Fire Cast F80
53% alumina, conventional castable
3Working Lining
Dri-Vibe® 291A
Mullite based dry vibratable
Dri-Vibe® 292A
Mullite based dry vibratable, less sinter depth
Dri-Vibe® 520A
90% alumina based dry vibratable
Precast Crucible/X-ACT
(alumina content 65-95%)
4Slip Plane & Relataed Materials
Vaporshield
Mica with exceptional resistance to metallic vapor and salt penetration
CM30 SRP (Micacombi)
Mica backed by 3mm ceramic paper
GM 40SRP Mica
Mica laminated with woven glass fabric
5Grout
Grout 163ACF
Tabular alumina troweling mix with ceramic fibers
Grout 563A
Fused alumina troweling mix with red pigment
Grout 663A
Fused alumina troweling mix
Minro-Al® Cast A44
Tabular alumina vibration castable
Coil Cast 97A
Tabular alumina self leveling castable
Minro-Sil® Grout S15
Silica based troweling mix
6Structural Component
TUFF-FLO 50A
50% alumina, low cement castable
Quick Cast® 62
95% alumina, conventional castable
Minro-Al® Cast A43
Mullite based, low cement vibration/self flow castable
Precast Shapes
(alumina content 45-90%)
▲ Collapse
|
